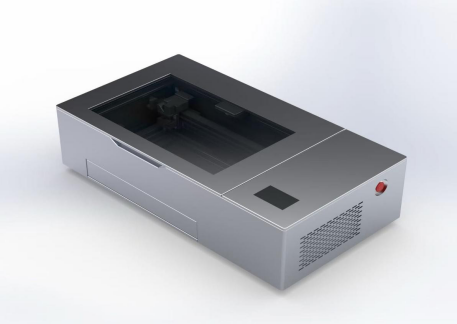

Desktop CO2 Laser Cutting Machine

CZ-T003

Product Specifications

CZ-T003

I. Basic Specifications

1. Laser Type: Sealed CO2 Glass Laser Tube
2. Laser Power: 55W
3. Working Area: 500 x 300 mm
4. Maximum Working Speed: 1–1000 mm/s
5. Positioning Accuracy: ≤ 0.01 mm
6. Laser Head Lifting Stroke: ≤ 25 mm
7. Cutting Thickness: 20 mm (Acrylic)
8. Maximum Material Thickness: ≤ 22 mm
9. Focus Method: Auto Focus, Manual Focus
10. Connection Method: USB, Ethernet, Wi-Fi Connection Supported
11. CCD Camera Resolution: 4K 16MP
12. Supported OS: Windows, Mac OS
13. Supported Software: Ps, Ai, CorelDRAW, AutoCAD, Solidworks, etc.
14. Supported File Formats: JPG, DXF, AI, DST, PNG, BMP, TIF, SVG, etc.
15. Laser Tube Service Life: ≥ 9000 hours
16. Software: Good-Laser LightMaker, LightBurn (PC), LightMaker (Mobile)
17. Control Method: 5-inch LCD Touch Screen / Mobile APP / PC Software
18. Machine Operating Noise: ≤ 60 dB
19. Machine Dimensions: ≤ 1080 x 585 x 320 mm
20. Drive System: High-speed Stepper Motor; X-axis: Linear Guide + 3M Timing Belt; Y-axis: Linear Guide + 3M Timing Belt
21. Safety Protection: Interlock Switch (lid-open/drawer-open stops operation), Emergency Stop Button, Safety Key, Work Status Indicator, Water Tank High-Temperature Alarm
22. Power Supply: AC 220V / 110V, 50 Hz / 60 Hz
23. Machine Weight: 68 KG

II. Water Cooling System Specifications (Built-in)

24. Cooling Method: Built-in Water Cooling System (Tank & Water Cooler)
25. Power Supply: DC 24V Air Cooling + Aluminum Coil
26. Water Tank Capacity: 3.5 L
27. Maximum Pump Head: 5 M

III. Air Pump Specifications (Built-in)

28. Rated Voltage: AC 220V
29. Power: 60 W
30. Noise Level: ≤ 48 dB
31. Displacement: 50 L/min

IV. Exhaust System Specifications (External Integrated, Side-bottom)

32. Rated Voltage: AC 220V
33. Power: 120 W
34. Air Volume: 5.5 m³/min
35. Noise Level: ≤ 50 dB
